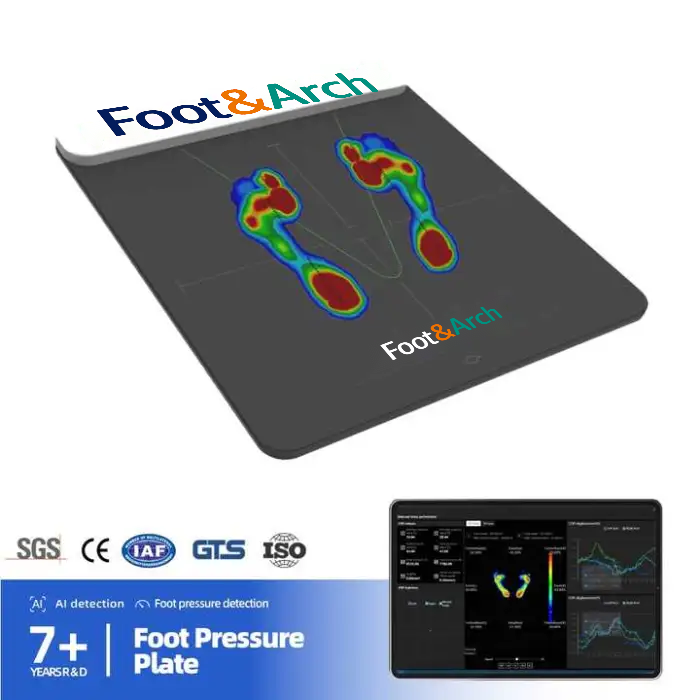

See exactly how your patients stand, balance and walk. The Foot & Arch Pressure Plate maps the load under each foot in seconds, turning what you'd otherwise judge by eye into clear, colour-coded, objective data that patients understand straight away.

A patient simply stands, then walks, across the plate. Its high-density sensor array records pressure distribution, centre-of-pressure path, contact area and left/right balance. The software then classifies arch type and produces a printable report ready to discuss in the same appointment.

Key features

• High-resolution sensing. A 64 × 64 sensor array (4,096 pressure points) gives a detailed plantar pressure map.
• Static and dynamic assessment. It covers standing posture and balance, plus heel-to-toe roll-over during walking.
• Instant visual reports. Heatmaps, centre-of-pressure trajectory, contact-area and force curves, and foot arch-type classification.
• Built for orthotics. Objective data to guide insole and orthotic prescription and footwear advice.
• Track progress. Repeat scans let you measure change over a course of treatment.
• Patient engagement. When people see their own data on screen, they understand the problem and stick to the plan.
• Fast and simple to use. The plate is portable, quick to set up and runs on any standard Windows PC.

Ideal for: podiatry, MSK physiotherapy, sports injury and performance clinics, orthotic and insole services, diabetic foot screening, and retail footwear fitting.

Technical specification

• Sensor type: flexible fabric array pressure sensor
• Sensing points: 64 × 64 (4,096)
• Sampling rate: 20–30 Hz
• Power: 5 V
• Software: Windows 7 or later
• Certification: CE
• Warranty: 12 months
• Packed size and weight: approx. 80 × 50 × 27 cm, 30 kg
